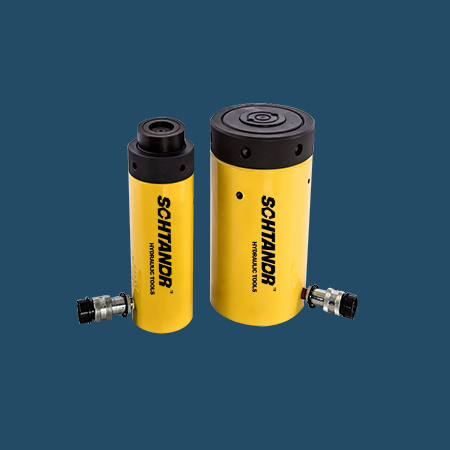

•機械式螺母鎖定裝置使員載支撐更安全                                                              •自鎖液壓缸

•高質量3/8-18NPT快速接頭                                                                              •單作用，負載載復位

•溢流孔設置具有限制行程的功能                                                                        •50-1000噸

•環保型烤漆提供更加耐久的抗銹蝕能力減少對環境的污染

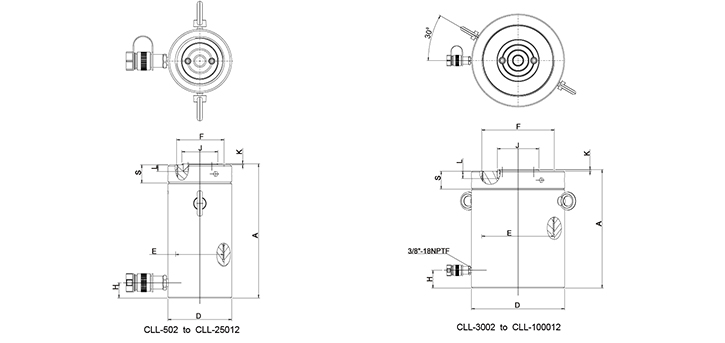

Model Number	Cylinder Cap.	Stroke	Coll. Height	Outside Diam.	Cyl. Bore Diam.	Plunger Diam.	Base to Advance Port	Lock Nut Height	Standard Saddle Diam.	Saddle Protrusion from Plngr.	Depth of Plunger Hole	Weight
型號	負載	行程	本體高度	外徑	內徑	活塞桿徑	進油孔位置	鎖帽高度	墊塊直徑	凸出高度	主軸孔深度	重量
	ton(kN)	(mm)	A (mm)	D (mm)	E (mm)	F (mm)	H (mm)	S (mm)	J (mm)	K (mm)	L (mm)	(kg)
CLL-502	50 (539)	50	164	125	95.0	Tr95x4	30	36	71	2	15	15
CLL-504		100	214	125	95.0	Tr95x4	30	36	71	2	15	20
CLL-506		150	264	125	95.0	Tr95x4	30	36	71	2	15	25
CLL-508		200	314	125	95.0	Tr95x4	30	36	71	2	15	30
CLL-5010		250	364	125	95.0	Tr95x4	30	36	71	2	15	35
CLL-5012		300	414	125	95.0	Tr95x4	30	36	71	2	15	40
CLL-1002	100 (929)	50	187	165	130.0	Tr130x6	30	44	71	2	15	30
CLL-1004		100	237	165	130.0	Tr130x6	30	44	71	2	15	39
CLL-1006		150	287	165	130.0	Tr130x6	30	44	71	2	15	48
CLL-1008		200	337	165	130.0	Tr130x6	30	44	71	2	15	56
CLL-10010		250	387	165	130.0	Tr130x6	30	44	71	2	15	64
CLL-10012		300	437	165	130.0	Tr130x6	30	44	71	2	15	73
CLL-1502	150 (1390)	50	209	205	159.0	Tr159x6	39	44	130	2	25	53
CLL-1504		100	259	205	159.0	Tr159x6	39	44	130	2	25	66
CLL-1506		150	309	205	159.0	Tr159x6	39	44	130	2	25	78
CLL-1508		200	359	205	159.0	Tr159x6	39	44	130	2	25	92
CLL-15010		250	409	205	159.0	Tr159x6	39	44	130	2	25	104
CLL-15012		300	459	205	159.0	Tr159x6	39	44	130	2	25	117
CLL-2002	200 (1861)	50	243	235	184.0	Tr184x6	50	50	130	2	25	83
CLL-2006		150	343	235	184.0	Tr184x6	50	50	130	2	25	117
CLL-20012		300	493	235	184.0	Tr184x6	50	50	130	2	25	170
CLL-2502	250  (2565)	50	249	275	216.0	Tr216x6	50	56	150	2	25	116
CLL-2506		150	349	275	216.0	Tr216x6	50	56	150	2	25	162
CLL-25012		300	499	275	216.0	Tr216x6	50	56	150	2	25	234
CLL-3002	300 (3193)	50	295	310	241.0	Tr241x6	59	60	139	5	25	173
CLL-3006		150	395	310	241.0	Tr241x6	59	60	139	5	25	233
CLL-30012		300	545	310	241.0	Tr241x6	59	60	139	5	25	323
CLL-4002	400 (3919)	50	335	350	267.0	Tr266x6	70	70	159	5	25	250
CLL-4006		150	435	350	267.0	Tr266x6	70	70	159	5	25	327
CLL-40012		300	585	350	267.0	Tr266x6	70	70	159	5	25	441
CLL-5002	500 (5114)	50	375	400	305.0	Tr305x6	80	80	179	5	25	367
CLL-5006		150	475	400	305.0	Tr305x6	80	80	179	5	25	466
CLL-50012		300	625	400	305.0	Tr305x6	80	80	179	5	25	617
